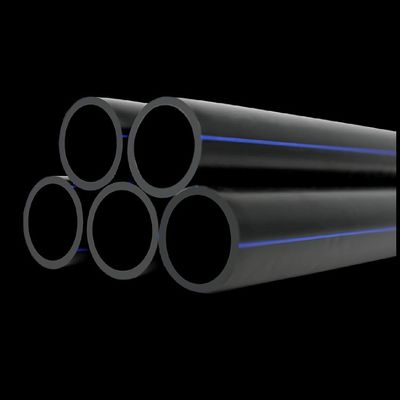

Municipal HDPE Black Plastic Water Supply Pipe 0.4Mpa-1.6Mpa

Basic Information
Place of Origin: Sichuan, China
Brand Name: YOUYUE
Certification: ISO 9001
Model Number: HDPE WATER SUPPLY PIPE
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: Standard package or customized packing
Delivery Time: Negotiable
Payment Terms: L/C, T/T
Supply Ability: 1000000 Meters per Month
Detail Information
Name: HDPE Pipe Working Pressure:: 0.2-7MPA
Specification: DN20mm-DN1200mm Material: HDPE
Usage: Water Supply Place Of Origin: China
Color: Black Feature: Endurable
High Light:

HDPE Black Plastic Water Supply Pipe

,

0.4Mpa Municipal black plastic water line

,

1.6Mpa Plastic Water Supply Pipe


Product Description






Product Description:
HDPE water supply pipes and fittings are made of PE100 or PE80 and their specifications,sizes and performances meet the requirements of GB13663-2000 and GB/13663.2-2005 standards,and their sanitary performance meet the requirements of G/T17219 standards and the applicable health and safety evaluation regulations of the Ministry of Health.HDPE water supply pipes have good flexibility,strong corrosion resistance light weight and excellent impact resistance.These pipes and fittings can be connected by socket-type heat fusion,butt-type heat fusion and electrofusion techniques.The pipeline system is safe and reliable,owns lower construction cost,and develops rapidly in engineering applications.



About the product

The HDPE pipes and fittings are formed via extrusion and plastic injection using the raw material of the brand-new polythene resin. Its quality is assured, and meets and even surpasses the relative requirements. The polythene is odorless and non toxic and feels like wax when touched by hand. The material has excellent low temperature resistance performance (The lowest temperature for the product is as low as -70--100 ℃)and good chemical stability. Most erosion of acid and alkali can be resisted (no resistance to the acid that can oxidize). The material is insoluble in common solutions under normal temperature and has small water absorption.

Product features

Stable sanitary performance: No-toxic, no chemical effect, no addictive of heavy metal and no bacteria produced. It could effectively prevent secondary pollution of drinking water.

Erosion-resistance and no scaling: The HDPE pipes and fittings can resist several chemical medium so as to avoid pipes being blocked by scaling.

Fine mechanical performance. The PE pipe has high toughness and strong adaptability to the uneven settlement of the pipes. Its strong resistance to underground movement and load can thus provide effective reliability and security of water supply, which makes the product an optimal choice for municipal water supply pipe network. Unique electro-fusion welding, hot butt fusion and hot butt injection technique: The water supply system that is assembled by homogeneous fusing and welding has excellent solderability, environmental stress crack resistance and rapid-crack resistance. The intensity of the interface/joint could be stronger than that of the pipe itself, realizing the joint and pipe integration and a secure joint. The leaking rate of municipal pipe network can be effectively reduced.



Strong chemical-erosion resistance and anti-aging performance: HDPE molecules have no polarity and therefore the stability of the fittings is excellent with strong resistance to chemical erosion. The HDPE pipes and fittings can bear the effect of acid and alkali in earth and be applicable in special circumstances. The product could have a lifespan of over 50 years when used under normal conditions, thus significantly lowering the expenses generated in maintenance and replacement.



Of light materials: The product is easy to load, unload and transport; also, its configuration is easy and reliable; meanwhile the installation period is shortened to effectively lower the expenses generated in installation and maintenance

Supply Ability

Supply Ability 30000 Meter/Meters per Month
Packaging & Delivery
Packaging Details upon request
Port Chongqing , Chengdu , Shanghai, any main port in China

Lead Time:
Quantity(Meters) 1 - 5000 5001 - 10000 >10000
Est. Time(days) 15 20 To be negotiated




Applicable fields

Municipal water feeding pipe works and public utilities

Water-feeding pipe net for petroleum and chemicals industry.

Water supplying system for buildings, agriculture and forestry.



Product series

Specification: c})20mm~ct)630mm.

Pressure grade: 0.4Mpa-1.6Mpa

Product color: Black and blue

Product types: In full range with accessories





Specifications SDR11 SDR13.6 SDR17 SDR21 SDR26
1.60Mpa 1.25Mpa 1.0Mpa 0.8Mpa 0.6Mpa
Thickness/mm Thickness/mm Thickness/mm Thickness/mm Thickness/mm
dn20 2.3 / / / /
dn25 2.3 2.3 / / /
dn32 3.3 2.4 2.3 / /
dn40 3.7 3 2.4 2.3 /
dn50 4.6 3.7 3 2.4 2.3
dn63 5.8 4.7 3.8 3 2.4
dn75 6.8 5.6 4.5 3.6 2.9
dn90 8.2 6.7 5.4 4.3 3.5
dn110 10 8.7 6.6 5.3 4.2
dn125 11.4 9.2 7.4 6 4.8
dn140 12.7 10.3 8.3 6.7 5.4
dn160 14.6 11.8 9.5 7.7 6.2
dn180 16.4 13.3 10.7 8.6 6.9
dn200 18.2 14.7 11.9 9.6 7.7
dn225 20.5 16.6 13.4 10.8 8.6
dn250 22.7 18.4 14.8 11.9 9.6
dn280 25.4 20.6 16.6 13.4 10.7
dn315 28.6 23.2 18.7 15 12.1
dn355 32.2 26.1 21.1 16.9 13.6
dn400 36.3 29.4 23.7 19.1 15.3
dn450 40.9 33.1 26.7 21.5 17.2
dn500 45.4 36.8 29.7 23.9 19.1
dn560 50.8 41.2 33.2 26.7 21.4
dn630 57.2 46.3 37.4 30 24.1
