Material: | PVC | Model Number: | CPVC110-4 |
---|---|---|---|
Specification: | De50 - De200mm | Color: | Orange |
Standard: | Standard, ISO9001,ISO4427, ISO4427 | Usage: | Electric Cable Protection |
High Light: | 200mm CPVC Electrical Cable Protection Sleeve,Electrical Cable Protection Sleeve 3mm Thickness,Light Weight 100mm cpvc pipe |

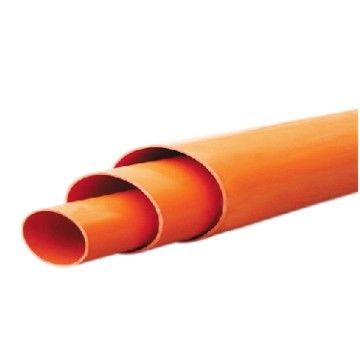

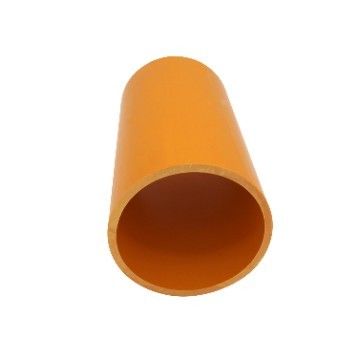

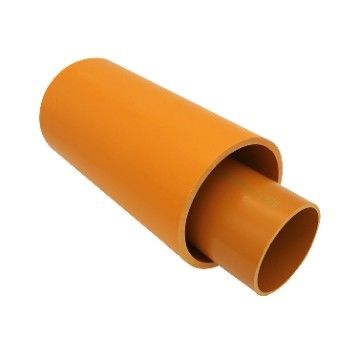

CPVC POWER CABLE SLEEVES
Made of PVC-C resin, the product owns various advantages such as high strength, good flexibility, high temperature resistance, corrosion resistance, flame resistance, good insulation performance, no pollution, aging resistance, light weight, and convenient construction. It is an ideal substitute for the traditional protective sleeves for cables.
Technical Characteristics:
1. Good heat resistance, sufficient strength and no distortion
2. Excellent insulation performance ( withstanding over 30,000volts of high voltage )
3. High compressive and impact resistances
4. Good sealing performance
5. Light weight and simple construction and laying
6. Long service life
Specification | Length(m) | Thickness(mm) | Life span |
Φ50*3.0 | 6 | 3 | more than 50 years |
Φ75*3.0 | 3 | ||
Φ110*3.0 | 3 | ||
Φ110*4.0 | 4 | ||
Φ110*5.0 | 5 | ||
Φ160*3.0 | 3 | ||
Φ160*4.0 | 4 | ||
Φ160*5.0 | 5 | ||
Φ192*4.0 | 4 | ||
Φ192*5.0 | 5 | ||
Φ192*7.0 | 7 | ||
Φ200*3.0 | 3 | ||
Φ200*4.0 | 4 | ||
Φ200*5.0 | 5 | ||
Φ200*7.0 | 7 | ||
Φ200*8.0 | 8 |
