Alkali Corrosion 300mm Inspection Chamber Silt Type Three Way Seat

Basic Information
Place of Origin: SICHUAN, CHINA
Brand Name: YOUYUE
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: Standard package or customized packing
Delivery Time: Negotiable
Payment Terms: L/C, T/T
Supply Ability: 1000000 Meters per Month
Detail Information
Specification: Dn20mm-1400mm Name: Drainage Plastic Inspection Chamber Inspection Well
Color: Black Shape: Customer's Request
HS Code: 3917230000 Condition: New
OEM: Accept MOQ: Negotiable
High Light:

300mm Inspection Chamber Silt Type


Three Way 300mm Inspection Chamber


Three Way 320mm inspection chamber

Product Description

Drainage plastic inspection chamber inspection well

Plastic inspection chamber


Product Description
Plastic inspection chamber is usually called"inspection well or inspection chamber"which is placed at interchange and turning point of drainage pipes, changes and plunge of caliber or slope, and in straight pipe at each certain distances. It is an affiliated drainage structure used to check, clean and dredge pipes regularly.

Plastic inspection chamber consists of closing manhole, shaft, well base, closing manhole adopts advanced rib structure and cone shape design, and through the computer simulation for horizontal and vertical pressure testing. This structure can meet various indicators of design requirements. This product is mainly used in municipal drainage and drainage system of traffic and transportation areas'inspection, cleaning and maintenance.


Characteristic of Plastic inspection chamber


l Polyethylene integrally formed, safe and reliable

l Light weight, anti-settling, corrosion resistant

l Can be integrated with the structural wall winding tube, no leakage

l Can be opened according to the design needs

l Caliber and tube height can be customized in a variety of forms to meet special terrain requirements

l Superior performance




Flow groove type starting seat

groove flow 90 degree elbow

groove type three-way seat

groove type four-way seat

silt starting seat

silt type straight hole seat

silt type 90 degree elbow

silt type three-way seat

silt type four-way seat.


Application of plastic inspection chamber


Municipal Drainage,Road,Public Buildings,Residential area, industrial Area etc.


Quick details


Inspection chamber
Place of Origin
Brand Name
Model Number
Product Name
Inspeciton Chamber
HS Code



Machine characteristic:


Our plastic inspection chamber is made of Polymer Resin, adopts combinative structure and consists of manhole base, manholeshaft,manhole cover,cover base and concrete supported plate etc. The plastic inspection chamber base adapts one-time molding, which can produce all types of manholes for two--way, three-way, Cross Tee 90°-165°any interchange. It uses reduce union, variable angle union and seal ring to change the connection of caliberand angle. Our manhole shaft uses PE pipe, corrugated pipe or winding pipe to adjust itself, so it is verymuch flexible, we can intercept the corresponding length according to site buried length. We use rubberseal ring at the connection of manhole shaft,inlet (outlet) pipe and manhole base,so that small inner angle changes can be made. It is convenient to install, not easy to leak, environment friendly and energy saving.




Functional advantages of plastic inspection chamber


(1) resistant to acid and alkali corrosion, aging and long service life.
(2) Safety and environmental protection.
(3) uniform settlement and compression.
(4) the construction is convenient and fast.
(5) efficient drainage.
(6) Light weight, easy to transport and install, reliable performance and strong bearing capacity.
(7) the comprehensive cost is low, the maintenance cost is low, and it can be recycled.
(8) good sealing performance and anti-leakage.
(9) Saving materials



Internal diameter Inspection well
315*200 315*225 315*300 450*200 450*225 450*300
450*400 500*225 500*300 500*400 500*500 630*225
630*300 630*400 630*500 630*600 700*300 700*400
700*500 700*600 1000*300 1000*400 1000*500 1000*600
1000*700 1000*800 1000*1000




Outside diameter Inspection well
200*110E 200*160E 315*160E 315*200E 315*250E
315*315E 450*250E 450*315E 450*400E 500*250E
500*315E 500*400E 500*500E

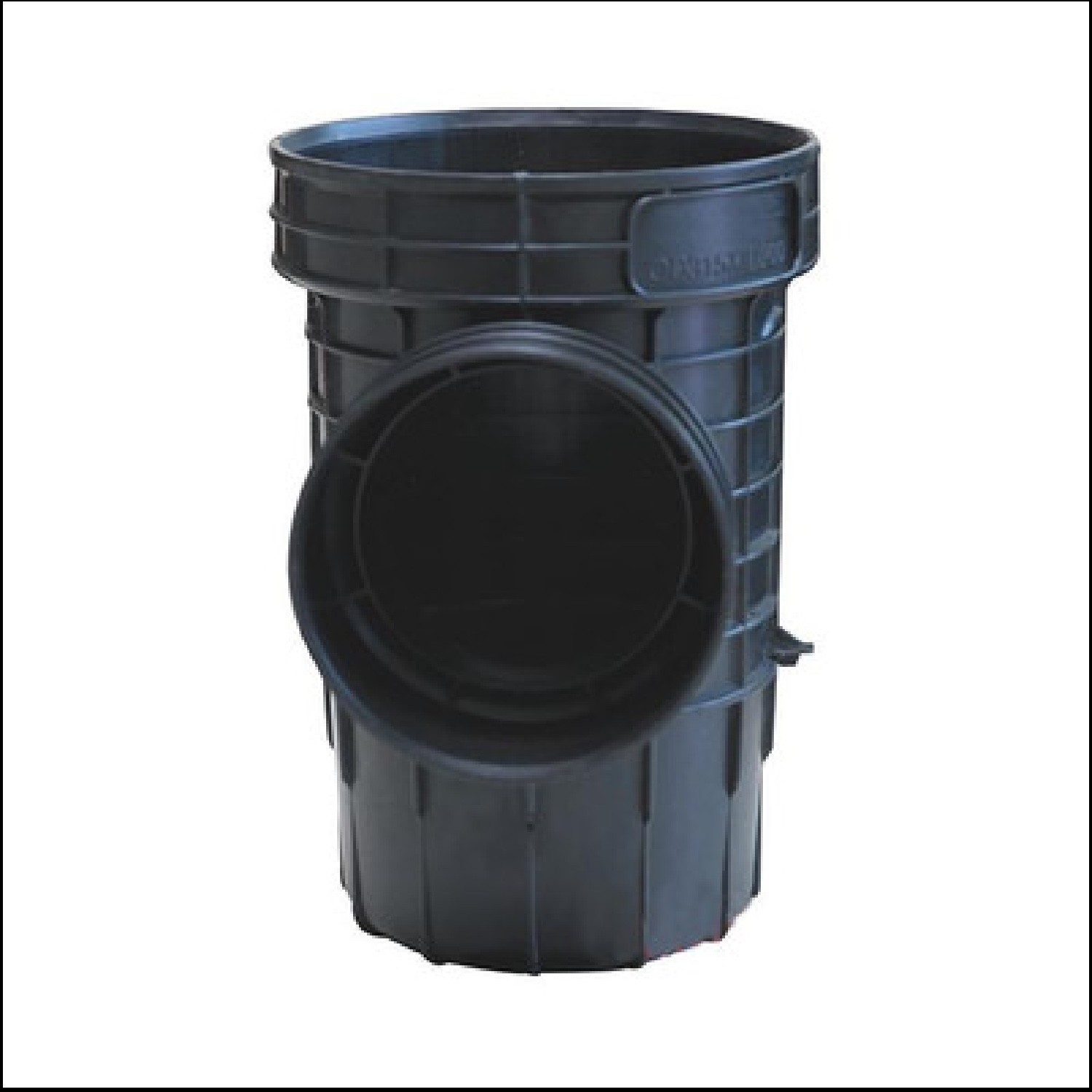

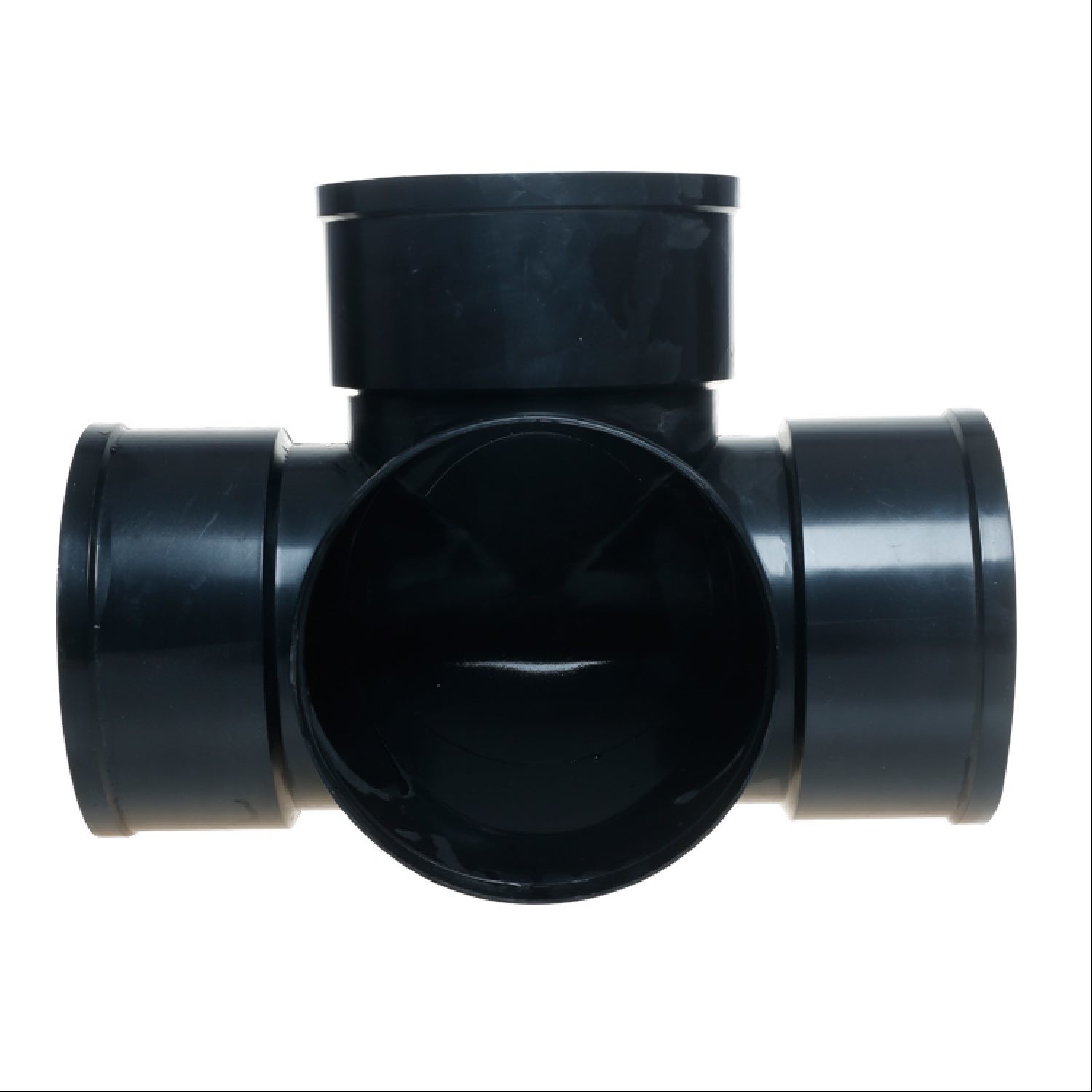

Alkali Corrosion 300mm Inspection Chamber Silt Type Three Way Seat 0Alkali Corrosion 300mm Inspection Chamber Silt Type Three Way Seat 1

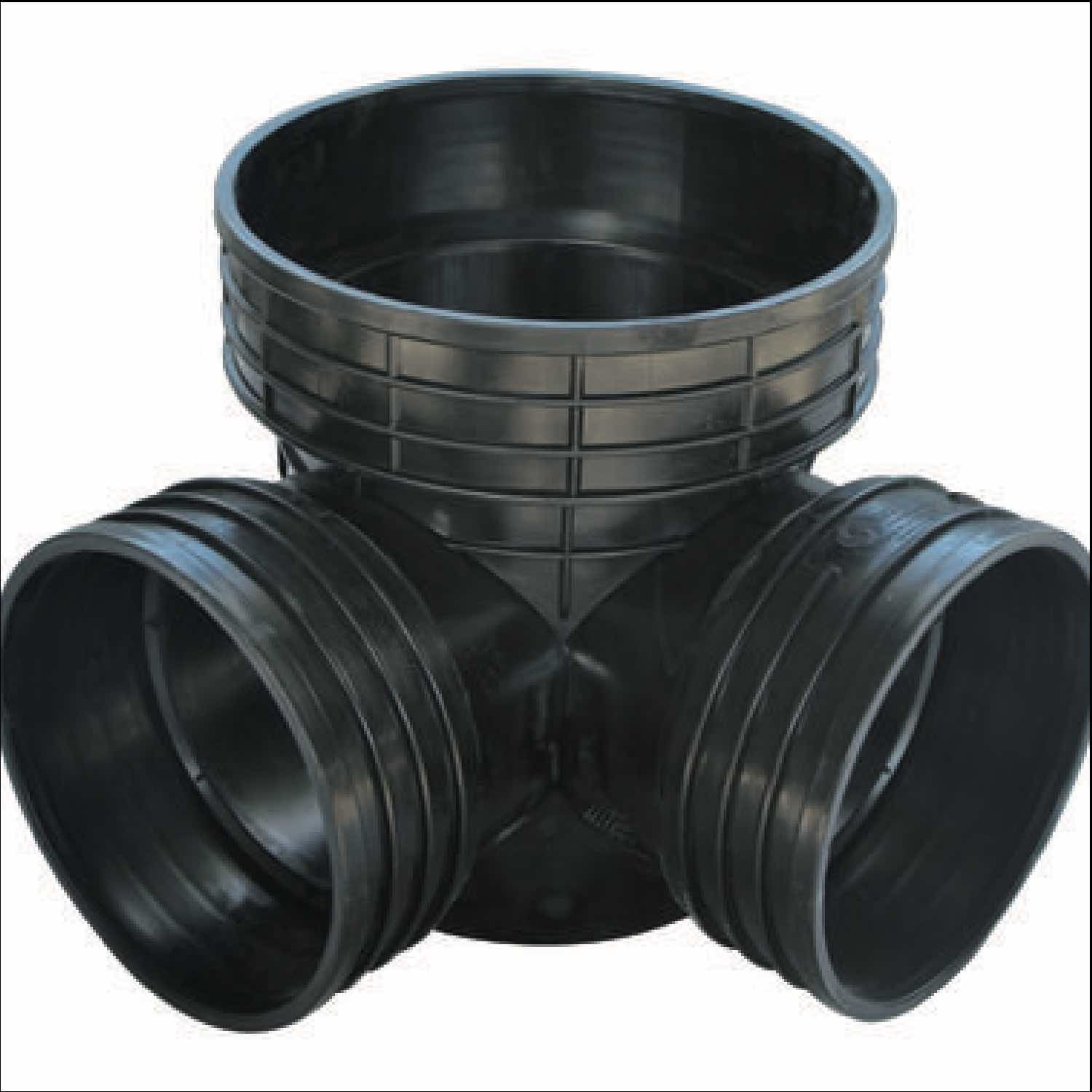

Alkali Corrosion 300mm Inspection Chamber Silt Type Three Way Seat 2
