|Material:||PE||Usage:||Sewerage, Drainage System|
|Specification:||De20-De630||Length:||6m Or As Required|
|Feature:||Steel Reinforced||Type:||Water Pipe|
Underground HDPE Storm Drain Pipe,
De360mm HDPE Storm Drain Pipe,
De360mm corrugated HDPE culvert pipe
Steel Mesh Wire Reinforced UNderground HDPE drainage pipes
About the product

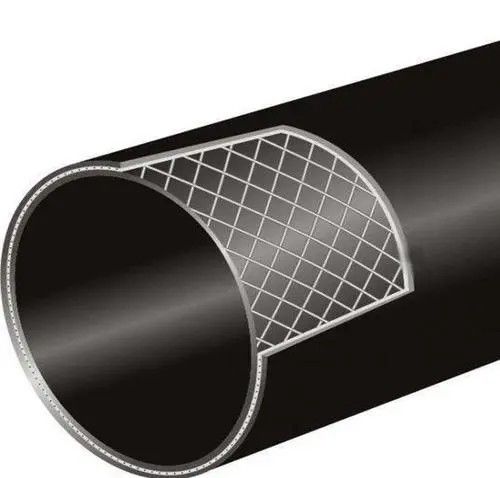

Steel mesh skeleton hdpe drainage pipes is a high- strength steel wire and polyethylene plastic as raw material to winding the formation of high-strength wire for the core layer to high-density polyethylene plastic for the inner and outer layer, and the formation of an integral pipe wall New composite structure wall pipe. Composite pipe to join the wire reinforcement network, not only in the pipe pressure than the HDPE wall tube has been greatly improved, while also retaining HDPE wall tube excellent corrosion resistance, no scale and so on. The reinforcement is covered in continuous thermoplastic, to ensure the isolation of the wire and the outside world, making the life of the wire longer, to ensure long-term pressure resistance of the pipe.
To overcome the phenomenon of rapid stress cracking of plastic pipe, the steel and plastic structure of these two materials are made of composite, there is no plastic pipe difficult to overcome the rapid stress.
With more than ordinary pure plastic pipe strength, rigidity, impact resistance, similar to the low linear expansion coefficient of steel and creep resistance and other characteristics;
Steel Mesh Hdpe drainage pipes has those advantages: Lightweight, easy installation, the use of electric heating pipe connection, anti-axial tensile strength, reliable and reliable connection technology, pipe fittings specifications developed fully, with a variety of other pipeines, valves and equipment connected; Double-sided anti-corrosion.
High temperature and corrosion resistance, low thermal conductivity;
Excellent structure, the reinforcement of the skeleton and the inner and outer layers of plastic inclusive into a whole, no inner and outer plastic and reinforced off the worries;
Smooth inner wall, no scaling, pipeline head loss 30% lower than
The overall life of the pipe according to the design of 50 years; Can be adjusted by the wire diameter, the thickness of the plastic layer, etc., to create different levels of pressure pipe;
Urban construction: urban water supply, heat return water,
Chemical engineering: acid,alkali, salt manufacturing,chemical, pharmaceutical, chemical, rubber and transport corrosive gases, liquids, solid
Thermal engineering: process water, water transport, dust, waste and other transportation pipeline.
Metallurgical mines: corrosive media transport in nonferrous metals smelting and pulp for tailings and tailings.
Expressway: Buried Drain Pipe, Cable Conduit.
Marine engineering: sea water transport, submarine pipeline and light (electric) cable ducts and so on.
Shipbuilding: ship sewer, drain, ballast pipe, ventilation pipe.
Details of Steel Mesh Hdpe drainage pipes
|Place of Origin: Sichuan, China|
|Length: 6m or as required|
|Processing Service: moulding, Cutting|
|Name: HDPE steel mesh reinforced pipe|
|Usage: Sewerage, drainage system|
Supply Ability 30000 Meter/Meters per Month
Packaging & Delivery
Packaging Details upon request
Port Chongqing , Chengdu , Shanghai, any main port in China
|Quantity(Meters)||1 - 5000||5001 - 10000||>10000|
|Est. Time(days)||15||20||To be negotiated|
|Withstand pressure of 1 mpa||6m||accordingly||Dn110mm.Dn125mm,Dn140mm,Dn160mm|
|Withstand pressure of 1.25 mpa||Dn110mm.Dn125mm,Dn140mm,Dn160mm|
|Withstand pressure of 1.6 mpa||Dn50mm,Dn63mm,Dn75mm,Dn90mm,Dn110mm,Dn125mm,Dn140mm|
|Withstand pressure of 2.0 mpa||Dn50mm,Dn63mm,Dn75mm,Dn90mm,Dn110mm,Dn125mm|
|Withstand pressure of 2.5 mpa||Dn50mm,Dn63mm,Dn75mm,Dn90mm,Dn110mm|
|Withstand pressure of 3.5 mpa||Dn50mm,Dn63mm,Dn75mm,Dn90mm,Dn110mm|
|Withstand pressure of 0.8 mpa||Dn250mm,Dn315mm,Dn355mm,Dn400mm,Dn450mm|
|Withstand pressure of 1 mpa||Dn200mm,Dn225mm,Dn250mm,Dn315mm,Dn355mm,Dn400mm|
|Withstand pressure of 1.25 mpa||Dn200mm,Dn225mm,Dn250mm,Dn315mm,Dn355mm|
|Withstand pressure of 1.6 mpa||Dn160mm,Dn200mm,Dn225mm,Dn250mm,Dn315mm,Dn355mm|
|Withstand pressure of 2.0 mpa||Dn140mm,Dn160mm,Dn200mm,Dn225mm,Dn250mm,Dn315mm|
|Withstand pressure of 2.5 mpa||Dn125mm,Dn140mm,Dn160mm,Dn200mm,Dn225mm,Dn250mm,Dn315mm|
|Withstand pressure of 3.5 mpa||Dn125mm,Dn140mm,Dn160mm,Dn200mm,Dn225mm,Dn250mm|
