| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Standard package or customized packing |
| Delivery Time: | Negotiable |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 1000000 Meters per Month |
| Model Number: | HC-001-HC-095 | Application: | Electric Wires Installation |
|---|---|---|---|
| Feature: | Heat-resistance,pressure-resistance,good Insulation,anti-aging | Shape: | Cylinder, 3 Ways, Cross, Bend Or Other Shape |
| Raw Material: | Carton | Standard: | IS09001,3C |
| High Light: | Cylinder PVC Junction Box 4 Way,Electric Wires UPVC Pipes And Fittings,Electric Wires PVC Junction Box 4 Way |
||

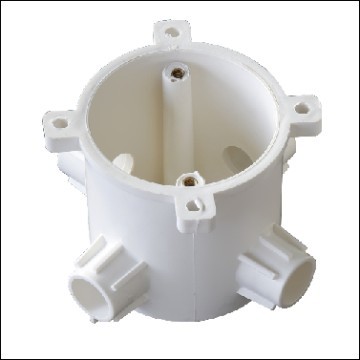

Heat Resistance Electric Wires U Pvc pipes and fittings Wire Box
| Specification | Length | Thickness | Size |
| super PVC Cold Bending wire tube(Underground available) | 3.8m | 1.45mm | DE16*1.45mm |
| super PVC Cold Bending wire tube(Underground available) | 3.8m | 1.6mm | DE20*1.6mm |
| reinforcement PVC Cold Bending wire tube(Underground available) | 3.8m | 1.3mm | DE16*1.3mm |
| reinforcement PVC Cold Bending wire tube(Underground available) | 3.8m | 1.5mm | DE20*1.5mm |
| normal Cold Bending wire tube | 3.8m | 1.0mm | DE16*1.0mm |
| normal Cold Bending wire tube | 3.8m | 1.15mm | DE20*1.15mm |
| normal Cold Bending wire tube | 3.8m | 1.35mm | DE25*1.35mm |
| PVC wire tube | 3.8m | 1.0mm | DE20*1.0mm |
Technical Characteristics:
1. Excellent bending flatness and bending performance: after 90degrees of bending , the gauge can pass under self-weight, andthere is no visible crack after normal temperature bending
2. Excellent impact and compression resistance ( withstanding pressure of above 750N )
3. Excellent heat resistance
4. Flame retardant and self-extinguishing ( self-extinguishing within 30 seconds )
5. Excellent electrical insulation performance
6. Preventing damage from rodents and insects
