EN124 A15 Gully Cover And Frame Powder Coating Ground Cover For Ditches

Basic Information
Place of Origin: SICHUAN, CHINA
Brand Name: YOUYUE
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: Standard package or customized packing
Delivery Time: Negotiable
Payment Terms: L/C, T/T
Supply Ability: 1000000 Meters per Month
Detail Information
Material: Ductile Iron, Glass Fiber, Plastic, Stainless Steel Specifications: All Size In The Market
Place Of Origin: China Feature: Endurable
Usage: Cable, Communication, Sewage Oem: Accepted
Size: Customized Size MOQ: Negotiable
High Light:

EN124 A15 Gully Cover And Frame

,

Powder coating Gully Cover And Frame

,

EN124 A15 Ground Cover For Ditches


Product Description

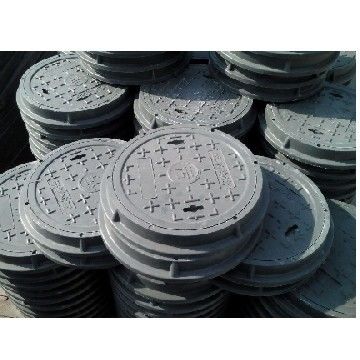

Manhole Covers and frame, Ductile Iron Manhole Cover, Glass Fiber Plastic Sewer Drain Manhole Cover Frame



manhole covers and frame



Product information:
Manhole covers and frame are manufactured for road construction, natural gas, water supply and drainage, telecommunications. Manhole covers and gratings should be smooth, no blisters, holes, distortion or any other defects.



1) sizes

500mm*500mm,600mm*600mm,700mm*700mm,800mm*800mm, 850mm*850mmand so on.Many size can be choose,or according to customer's drawing or requirements.


2) Material
Ductile Iron GGG500,or according to customers requirement



3) Designs
EN124 A15, B125, C250, D400, E600 and F900 or As per customers' drawings or samples



4) Processes:
A) Moulding boards
B) Green sand with hand moulding



5) Coating
Cold applied black bitumen Or without Coating or as per customers' requirement



6)Inspection:
Third party inspection available upon request



Details of manhole covers and frame

Product name  ductile Iron manhole covers and frame in all sizes
Available material Ductile Iron
Dimension Per customer's drawing or requirements
Color Per customer's requirements
Weight About 44kg or Customized
Shape Round/Rectangular
Standard EN 124
Surface treatment

Painting, Powder coating, spraying,

galvanization, chrome plating

Tolerance Per customer's drawing or requirement
Application

1.Sewer,gas pipes,gas station,chemical bases,real estates

2.urban arteries,high-grade highways,expressways

3.freight transport piers,airports

Capacity 10,000 pieces per month
QC system 100% inspection before shipment
MOQ 100 pcs
Certification ISO,CE
Service OEM&ODM service,After-sale service
Lead time 30-45 days,according to time cost of production





Specifications of manhole frame



Loading Frame Size Clear Height Weight Accessories and/
Pressure (mm) opening(mm) (mm) (kg) or other explanations
D400 400×400 300×300 100 22 single seal
D400 450×450 300×300 100 42 double seal
D400 588×519 434×434 100 39
D400 750×600 450×600 100 57 rectangle
D400 660×660 560×560 75 57 single seal
D400 750×600 600×450 100 57
D400 700×700 600×600 100 60
D400 700×700 600×600 100 80 double triangular
D400 750×750 600×600 100 58/63 with GRP plate/ without GPR plate
D400 750×750 600×600 100 65 double seal
D400 750×750 600×600 100 90 double triangular
D400 750×750 600×600 100 75/78 with GRP plate
B125 760×760 600×600 100 75
B125 900×750 600×750 100 93 with sealing ring

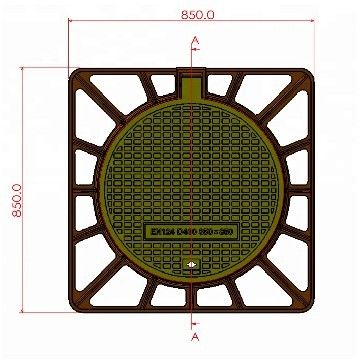

D400 850×850 600 100 63 with sealing ring
D400 850 600 100 56/58 with sealing ring
D400 850 600 100 64 with lock and sealing ring
D400 850 600 100 65 with sealing ring and GRP plate double semicircle
D400 760×760 600 100 79 with lock
D400 850 600 100 66 with sealing ring
D400 900×900 700 100 86 with lock and hinge
D400 900 700 100 90
D400 900×750 750×600 100 93
D400 900×900 800×800 100 115
D400 1000×1000 900×900 100 149



Cover Size (mm) Weight (Kg) Bear Weight (Ton) Class
300×500 15 10 B125
400×600 18 10 C250
450×750 26 10 C250
400×400 12 10 B125
500×500 18 10 C250
600×600 28 15 C250
600×600 35 30 D400
700×700 38 20 C250
800×800 46 20 C250
