| Place of Origin: | SICHUAN, CHINA |
|---|---|
| Brand Name: | YOUYUE |
| Minimum Order Quantity: | Negotiable |
| Price: | Negotiable |
| Packaging Details: | Standard package or customized packing |
| Delivery Time: | Negotiable |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 1000000 Meters per Month |
| Specification: | Dn20mm-1400mm | Connection: | Flange |
|---|---|---|---|
| Name: | Drainage Plastic Inspection Chamber Inspection Well | HS Code: | 3917230000 |
| Transport Package: | Standard Packing | Place Of Origin: | Sichuan,China |
| OEM: | Accept | MOQ: | Negotiable |
| High Light: | Municipal Drainage Plastic Inspection Well,Municipal Drainage 450mm inspection chamber,450mm Plastic Inspection Well |
||

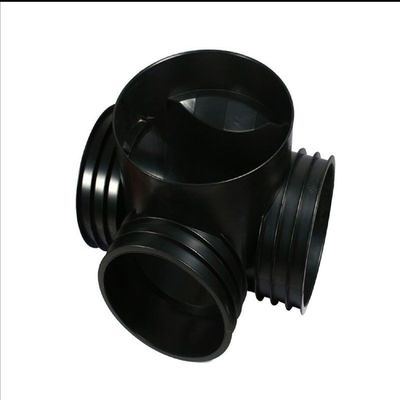

Drainage Plastic Inspection Chamber Inspection Well
Plastic inspection chamber consists of closing manhole, shaft, well base, closing manhole adopts advanced rib structure and cone shape design, and through the computer simulation for horizontal and vertical pressure testing. This structure can meet various indicators of design requirements. This product is mainly used in municipal drainage and drainage system of traffic and transportation areas'inspection, cleaning and maintenance.
Characteristic of Plastic inspection chamber
l Polyethylene integrally formed, safe and reliable
l Light weight, anti-settling, corrosion resistant
l Can be integrated with the structural wall winding tube, no leakage
l Can be opened according to the design needs
l Caliber and tube height can be customized in a variety of forms to meet special terrain requirements
l Superior performance
Types:
Flow groove type starting seat
groove flow 90 degree elbow
groove type three-way seat
groove type four-way seat
silt starting seat
silt type straight hole seat
silt type 90 degree elbow
silt type three-way seat
silt type four-way seat.
Application of plastic inspection chamber
Municipal Drainage,Road,Public Buildings,Residential area, industrial Area etc.
|
item
|
Inspection chamber
|
|
Place of Origin
|
China
|
|
|
Sichuan
|
|
Brand Name
|
YOUYUE
|
|
Model Number
|
01
|
|
Product Name
|
Inspeciton Chamber
|
|
Specification
|
DN200mm-1000mm
|
|
HS Code
|
3917230000
|
|
Material
|
Plastic
|
|
Color
|
Black
|
Machine characteristic:
Our plastic inspection chamber is made of Polymer Resin, adopts combinative structure and consists of manhole base, manholeshaft,manhole cover,cover base and concrete supported plate etc. The plastic inspection chamber base adapts one-time molding, which can produce all types of manholes for two--way, three-way, Cross Tee 90°-165°any interchange. It uses reduce union, variable angle union and seal ring to change the connection of caliberand angle. Our manhole shaft uses PE pipe, corrugated pipe or winding pipe to adjust itself, so it is verymuch flexible, we can intercept the corresponding length according to site buried length. We use rubberseal ring at the connection of manhole shaft,inlet (outlet) pipe and manhole base,so that small inner angle changes can be made. It is convenient to install, not easy to leak, environment friendly and energy saving.
Functional advantages of plastic inspection chamber
| Internal diameter Inspection well | |||||
| 315*200 | 315*225 | 315*300 | 450*200 | 450*225 | 450*300 |
| 450*400 | 500*225 | 500*300 | 500*400 | 500*500 | 630*225 |
| 630*300 | 630*400 | 630*500 | 630*600 | 700*300 | 700*400 |
| 700*500 | 700*600 | 1000*300 | 1000*400 | 1000*500 | 1000*600 |
| 1000*700 | 1000*800 | 1000*1000 | |||
| Outside diameter Inspection well | ||||
| 200*110E | 200*160E | 315*160E | 315*200E | 315*250E |
| 315*315E | 450*250E | 450*315E | 450*400E | 500*250E |
| 500*315E | 500*400E | 500*500E | ||
