Silicon Core Polyethylene Electrical Conduit 40/33 3.5mm Thickness

Basic Information
Place of Origin: Sichuan, China
Brand Name: YOUYUE
Certification: ISO 9001
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: Standard package or customized packing
Delivery Time: Negotiable
Payment Terms: L/C, T/T
Supply Ability: 1000000 Meters per Month
Detail Information
Material: PE Place Of Origin: Sichuan,China
Specification: 40/33 Thickness: 3.5mm
Application: Optical Cable Communication Network System Color: Customer's Requirements
Usage: Cable Protection Length: As Required
High Light:

Silicon Core Polyethylene Electrical Conduit


3.5mm Thickness


3.5mm Thickness hdpe cable duct

Product Description

Silicon Core Tube Cable Protection Plastic Communication Conduit


HDPE Plastic Communication Silicon Pipe

Plastic communication conduit Features:

1. The inner core of the silicon core layer is a solid, permanent lubricant;
2. The silicon core layer of the inner wall is synchronously extruded into the wall of the high-density polyethylene pipe, and uniformly distributes the inner wall of the pipe, does not peel off, detaches, and has the same life as the silicon pipe;
3. The silicon core layer of the inner wall has the same physical and mechanical properties as the high density polyethylene;
4. The frictional characteristics of the inner core silicon core layer remain unchanged, and the cable can be repeatedly extracted in the pipe;

1. Low friction: Plastic communication conduit's inner layer of ducts is duly silicon coated which minimizes the friction between optical fibre cables(OFC) and the duct during the process of blowing the cable into the ducts, thus providing smooth installation of OFC in the duct without damaging the cable fibres.
2. Green Initiative:Plastic communication conduit has recycled material, environment friendly.
3. Corrosion resistance: PE belongs to inert materials, can resistance to various chemical media.
4. Long working life:Minimum 50 years life under normal conditions.
5. Low system cost:less maintenance costs, reduce the cost for the project.
6. Good flexibility: high resistance to impact. Resistance to earthquake and twisting.
7. Non-leakage:Plastic communication conduit can be connected by Electric welding.

application of plastic communication conduit :
*Optical cable installation and protection.
*Highway Communication Pipeline.
*Other communication channels.



Specifications OD(mm) Min ID(mm) Thickness(mm) Length(m)
25/21 25 21 2 500,1000/Roll or customizable
32/26 32 26 2.5 500,1000/Roll or customizable
34/28 24 28 3.0 500,1000/Roll or customizable
40/33 40 33 3.5 500,1000/Roll or customizable
46/38 46 38 4.0 500,1000/Roll or customizable
50/41 50 41 4.5 500,1000/Roll or customizable
63/54 63 54 4.5 500,1000/Roll or customizable
76/66 76 66 5.0 500,1000/Roll or customizable




Item Data
1. Ring stiffness, KN/m2 ≥50
2. Flat test Non-rupture and non-stratification
3. Tensile strength, Mpa ≥21
4. Elongation at break, % ≥350
5. Maximum traction load, N ≥8000
6. Hardness, HD ≥59
7. Longitudinal retraction rate,% ≤3
8. Friction coefficient of inner wall static state ≤0.25
moving ≤0.15
9. Power frequency breakdown strength, MV/mm ≥24

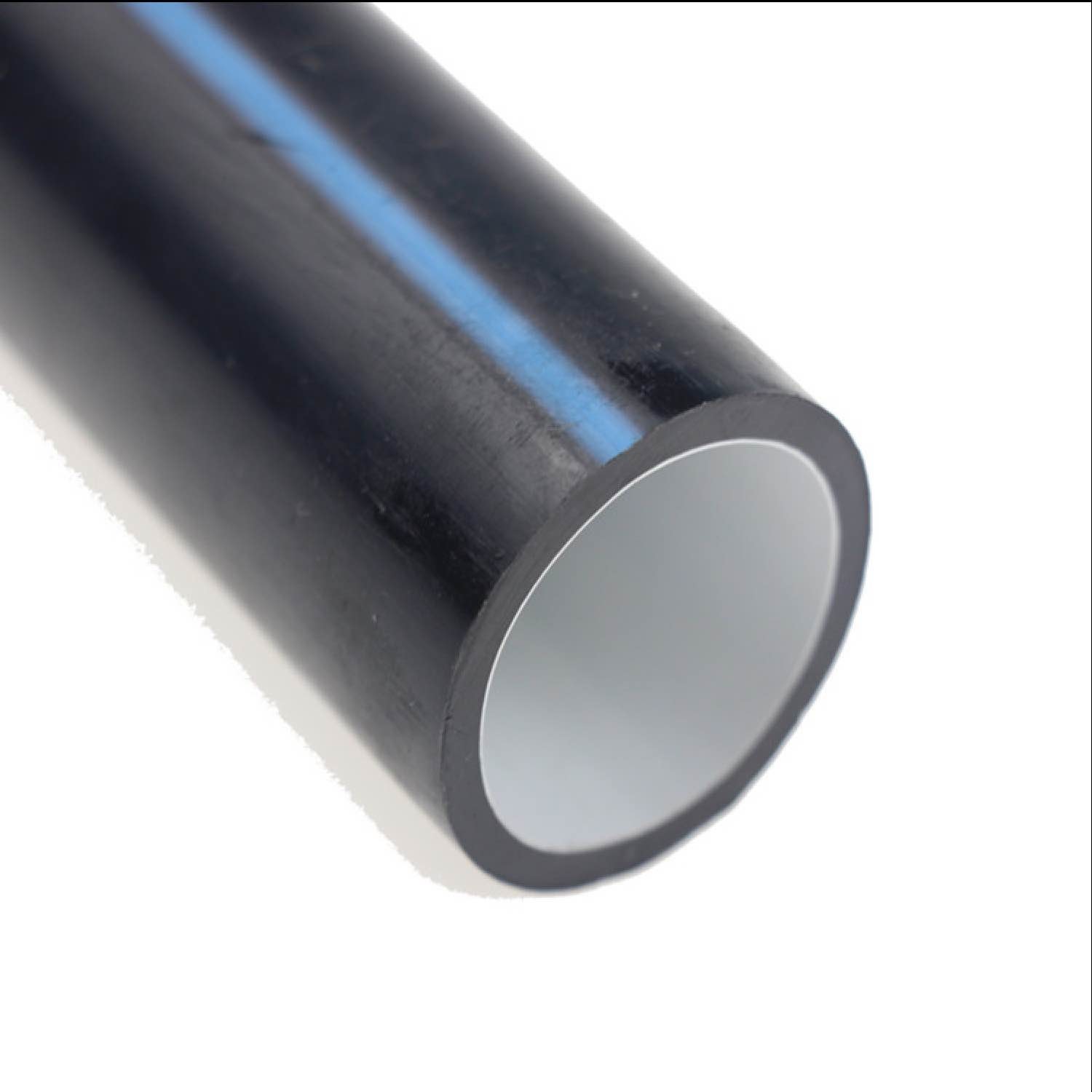

Silicon Core Polyethylene Electrical Conduit 40/33 3.5mm Thickness 0

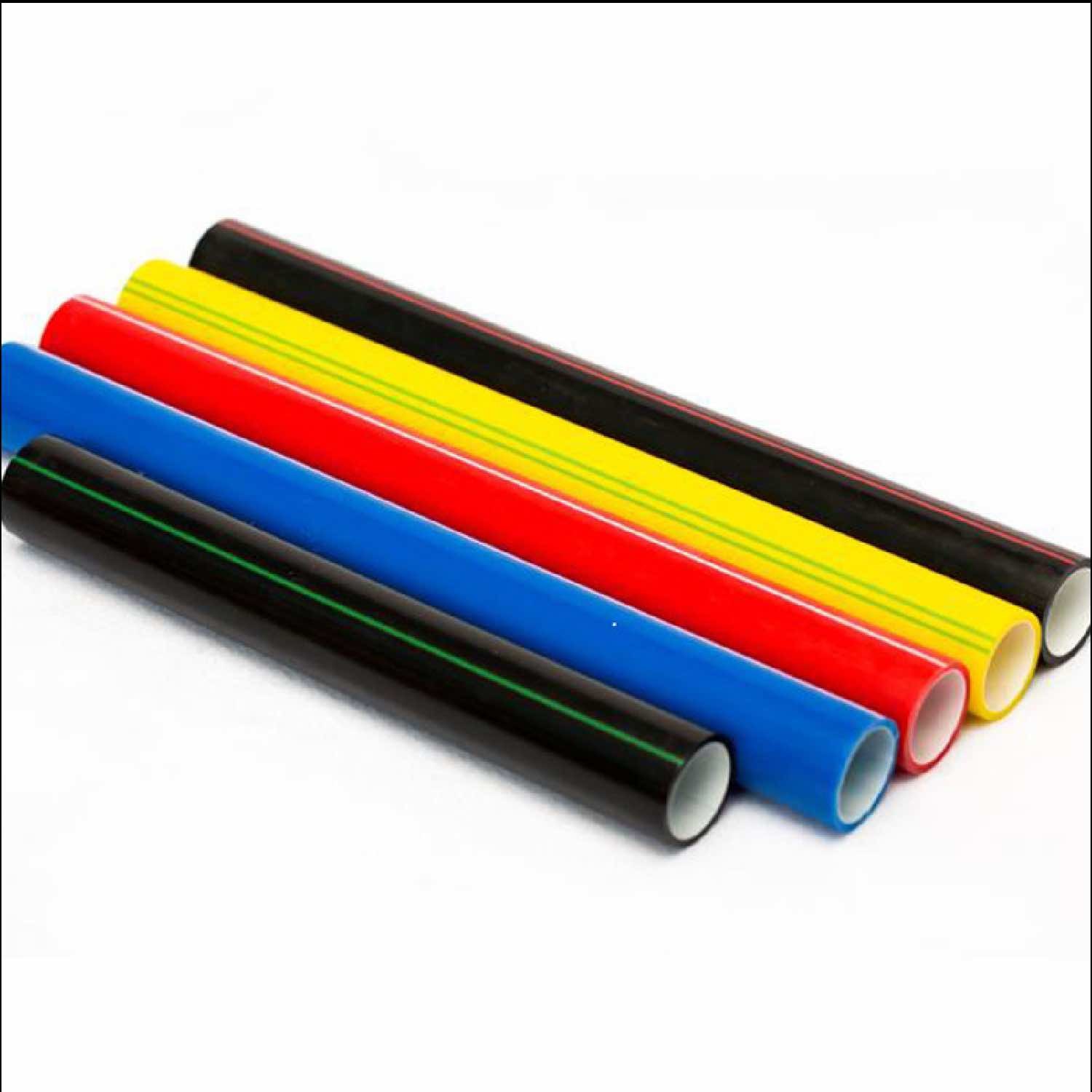

Silicon Core Polyethylene Electrical Conduit 40/33 3.5mm Thickness 1

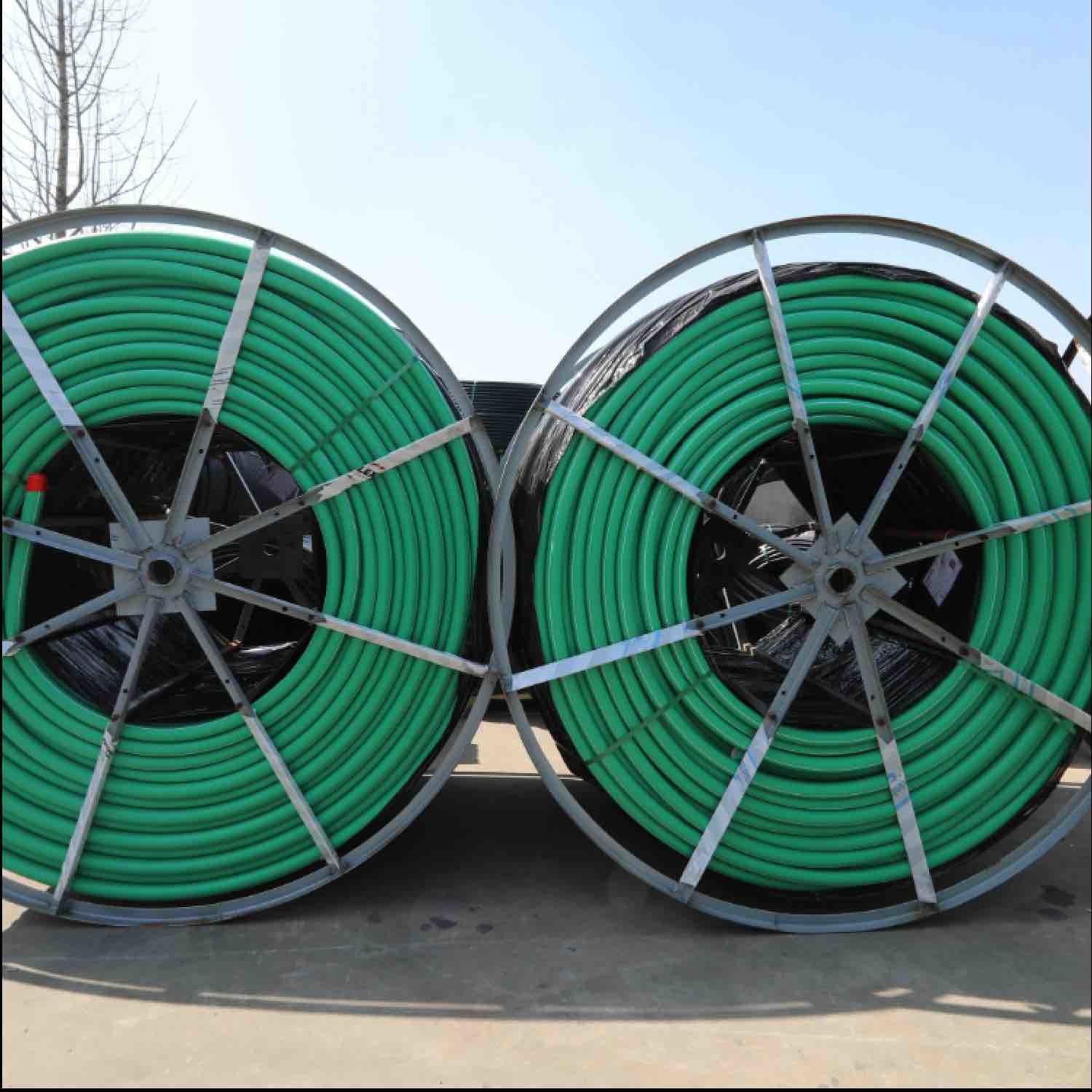

Silicon Core Polyethylene Electrical Conduit 40/33 3.5mm Thickness 2
