|Irrigation, Industrial Waste Discharge
|High Density Polyethylene
|Stainless Steel Belt Reinforced Hdpe Corrugated Pipe
|Corrugated Round Pipe
|Place Of Origin:
HDPE Corrugated Pipe DN300,
SN16 HDPE Corrugated Pipe,
DN300 HDPE Waste Pipe

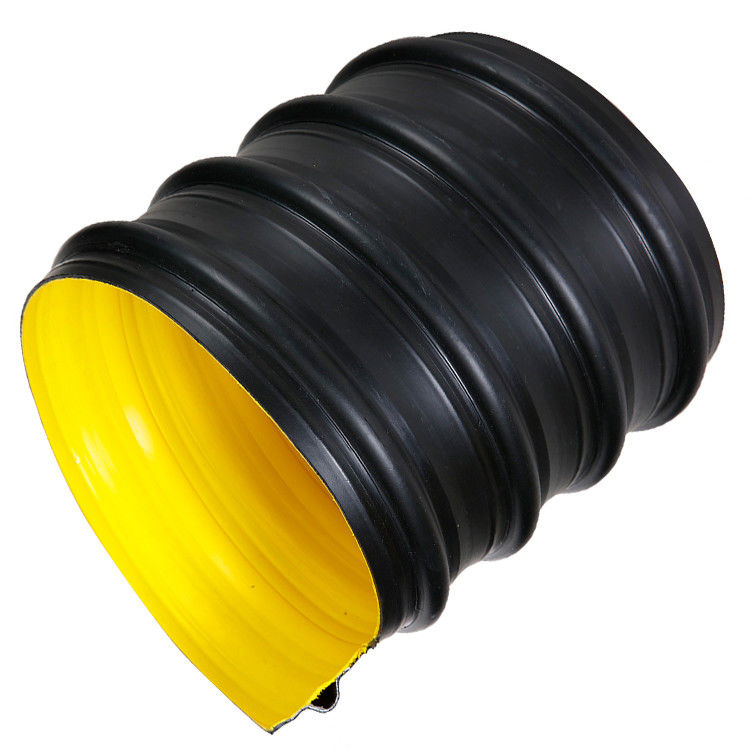

Stainless Steel Belt Reinforced Hdpe Corrugated Pipe
Steel Strip Corrugated Hdpe Drainage Pipe
Steel Strip Corrugated Hdpe Drainage Pipe uses PE resin as its basic body and the corrugated steel bands coated with adhesive resin as its main supportive structure, and then compounds the straight-inner- walled metal reinforced spiral corrugated pipe together with inner and outer layer of PE.
Its quality is assured, and meets and even surpasses the relative requirements.
Strong chemical resistance: HDPE molecules have no polarity and therefore the stability of the fittings is excellent with strong resistance to chemical erosion.
Strong exterior force resistance: The appearance of spiral corrugated structure of the pipe has its flexibility and strong restorability so that the product is not easy to crack when stretched and squeezed in bad geological environment like earthquake and swamp.
Strong low-temperature resistance: Steel Strip Corrugated Hdpe Drainage Pipe would not crack and leak under freezing level in the environment of the temperature at -60C.
Excellent anti-abrasion performance: Steel Strip Corrugated Hdpe Drainage Pipe has low friction coefficient and small resistance so that it can convey medium, water drainage and sewage fast.
Environment protection: PE is non-toxic and has no chemical effects and no heavy metal additives. It uses recyclable materials, low-carbon, environment-friendly and healthy.
Nominal ring stiffnesses in high grade: Its ring stiffnesses can be as high as SN8, SN12.5 and SN16.
Strong chemical erosion resistance and long life span:
Special materials and techniques are used to solve not only the problem of steel board erosion resistance but also the problem of adhesiveness of the steel board and PE, making the life span of the pipe the same as that of pure plastic pipes. The product could have a lifespan of over 50 years when used under normal conditions, thus significantly lowering the expenses generated in maintenance and replacement.
Of light materials: Steel Strip Corrugated Hdpe Drainage Pipe is easy to load, unload and transport; also, its configuration is easy and reliable; meanwhile the installation period is shortened to effectively lower the expenses generated in installation and maintenance.
Steel Strip Corrugated Hdpe Drainage Pipe is applicable for rain, sewage and waste water drainage systems which the temperature of medium is not higher than 45C in long term.
Municipal domain: municipal drainage system and sewage system;
Construction domain: building drainage, underground drainage, sewage and building ventilation, etc.
Hydraulic domain: Casing pipe for shaft sinking projects; Agriculture domain: drainage and irrigation of crop fields, fruit farm, vegetable farm and forest;
Industry domain: sewage and waste water drainage in chemical industry, pharmaceutic, and environment protection, etc.
Transportation area: soakage and drainage of railway and highway;
Other domains: soakage and drainage in other industries, like golf court and football stadium.
Nominal ring stiffnesses grade: SN8, SN12.5 and SN16
Product color: Black
Product types: In full range with accessories
