Telecommunications UPVC Electrical Conduit Pipe

Basic Information
Place of Origin: SICHUAN, CHINA
Brand Name: YOUYUE
Certification: ISO9001, ISO4427
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: Standard package or customized packing
Delivery Time: Negotiable
Payment Terms: L/C, T/T
Supply Ability: 1000000 Meters per Month
Detail Information
Material: PE Standard: ISO4427, EN, DIN, AS, ASTM
Certificate: ISO9001, ISO4427 Application: Electric Cable Wire Protection
Advantage: Rigid UV Risistance Feature: Flameproof Waterproof Insulation
Color: White Usage: Cable Protection
High Light:

Telecommunications UPVC Electrical Conduit Pipe

,

Telecommunications pvc UPVC pipe

,

4M UPVC Electrical Conduit Pipe


Product Description

inch upvc Pipes and fittings For Telecommunications Cable Protection



Name: PVC Electric Conduit Pipe
Diameter 16mm-50mm(For electrical wire)
Thickness 0.8mm-2.0mm
Material PVC
Color White/ blue/light blue/ red/ black/ yellow
Packing Standard exported packaging or according to customer's requirement
Standard JG3050-1998
MOQ 3000 Meters
Delivery time 15-20days for 20ft container, 20-25days for 40ft container
Usage Electric wires installation







Introduction:
Electrical conduit refers to the construction industry standard JG 3050-1998 for the protection of wires or cable wiring in electrical installation engineering. It allows the penetration and replacement of wires and cables. Huaxin brand PVC-U insulated electrical conduit and fittings are made of pvc as the main raw material, and an appropriate amount of stabilizers, modifiers, fillers and other auxiliary materials are added. Conductor tubes and fittings that are kneaded, cooled, and then extruded and injection molded. Mainly used as wire and communication cable casing.




Features:
1. Insulation: In the aspect of preventing accidental electric shock, PVC is not conductive, there is no danger of electrified conduit and it can withstand 2 KV voltage and will not be broken down.
2. High mechanical strength: PVC pipe with special auxiliary agent can withstand pressure, so it can be buried in concrete, not afraid of compression, impact damage;
3. Anti-aging: Advanced formulation and technology make Huaxin casing ageing and discoloration free;
4. Fire prevention: self-extinguishing immediately after leaving the flame, in the case of fire, the relay power is twice as much as that of the steel tube (that is, the effective safe evacuation time is doubled);
5. Moisture-proof and acid-alkali-proof: PVC sleeve is moisture-proof and rust-proof, acid-proof, alkali-proof and oil-proof;
6. Simple construction: light weight, easy to transport and construction; easy to bend, easy to splice;
7. Save investment: Compared with steel pipe, using PVC pipe can greatly reduce material cost and construction and installation cost.





Nominal diameter(mm) Allowed tolerance(mm) Min inner diameter(mm) Classification Length(m)
16 -0.2 12.2 Light medium heavy 4
20 -0.3 15.8 Light medium heavy 4
25 -0.4 20.6 Light medium heavy 4
32 -0.4 26.6 Light medium heavy 4
40 -0.5 34.4 Light medium heavy 4

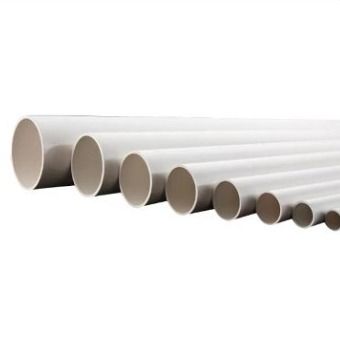

Telecommunications UPVC Electrical Conduit Pipe 0

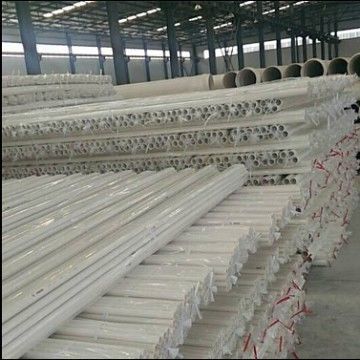

Telecommunications UPVC Electrical Conduit Pipe 1
