ISO9001 Underground Electrical Conduit DN50*5 Buried Electrical Conduit

Basic Information
Place of Origin: SICHUAN, CHINA
Brand Name: YOUYUE
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: Standard package or customized packing
Delivery Time: Negotiable
Payment Terms: L/C, T/T
Supply Ability: 1000000 Meters per Month
Detail Information
Color: Orange Usage: Transportation Pipe
Temperature: -5-70℃ Standard: ISO4427,ISO9001,GB/T13663,CE
Specification: DN20-250 Material: Pp
Place Of Origin: China Length: As Required
High Light:

ISO9001 Underground Electrical Conduit


DN50*5 Buried Electrical Conduit


Underground Electrical Conduit DN50*5

Product Description

MPP (modified polypropylene) underground electrical conduit for electrical communication cable protection
Product Description:

The MPP underground electrical conduit protective sleeves for power cables is a new plastic pipe made of MPP with special formulation and technique. It has a series of advantages, such as high strength , good stability , easy cable threading , simple construction and cost saving. With outstanding advantages during pipe jacking construction, the product meets the development requirements of modern cities. Trenchless technology is adopted for the construction of MPP power cable sleeves, which not only protects the pipe line network reliability, reduces its failure rate , but also greatly improves urban environment.

MPP (modified polypropylene) underground electrical conduit for electrical communication cable protection is manufactured as the new type of plastic pipe adopting modified polypropylene as the main raw material and using a special formula and processing technology,with good features of high strength,temperature resistance,handling easily,convenient installation and cost saving.The modified polypropylene trenchless pipe is widely used as the protection pipe of electrical communication cable. Its characteristics is more obvious as a towing pipe. It conforms to the development requirements of modern cities and is suitable for buried depth of 2~18m.


Quick details:

Model Number: Product name:
MPP underground electrical conduit MPP underground electrical conduit
Material: Application:
PP Wire Protecting
Specification: Feature:
DN50-DN315 Corrosion Resistant
Length: Certification:
6M 9M 12M, 6m 9m 12m ISO9001-2008 CE
Thickness: Connection:
6MM-22MM Thermofuse and electrofusion
Standard: Keyword:
ISO DL/T802.7-2010 Plastic Pipe for cable protection
Processing Service: Type:
Moulding, Cutting Round Pipe
Color: OEM:
Orange Accpet


Features of Underground electrical conduit

1. M-PP pipe has excellent electrical insulation.
2. M-PP pipe has higher thermal deformation temperature and low temperature impact performance.
3. M-PP pipe has higher tensile and compression resistance than HDPE.
4, M-PP pipe is light, smooth, frictional resistance is small, can be hot-melt butt joint.
5, M-PP tube long-term use temperature-5 ~ 70 ℃.
6. Construction instructions It is strictly forbidden to drop, hit, scratch, or expose to the sun during the transportation and construction of pipes. The axis of the two pipes must be aligned during the hot-melt butt joint, and the end face cutting should be vertical and flat. The processing temperature, time, pressure, and climate conditions are adjusted accordingly. The minimum bending radius of the pipe should be ≥75 pipe outer diameter.

Technical Characteristics:

1. Excellent electrical insulation performance.
2. High thermal deformation temperature and good low-temperature impact resistance.
3. The tensile and compressive resistances are higher thanthose of HDPE.
4. Light weight, smooth, low friction resistance, and butt-type heat fusion welding is available.
5. Long-term working temperature range : -5-70℃.


Specification Length(m) Thickness(mm)
DN50*5 6 5
DN80*5 5
DN80*8 8
DN110*4 4
DN110*5 5
DN110*6 6
DN110*8 8
DN110*10 10
DN150*8 8
DN150*10 10
DN150*12 12
DN160*8 8
DN160*10 10
DN180*8 8
DN180*10 10
DN200*8 8
DN225*8 8
DN160*12 12
DN180*12 12
DN200*10 10
DN200*12 12
DN225*10 10
DN225*12 12
DN250*8 8
DN250*10 10
DN250*12 12



Item Index
Density (g/cm3) 0.90-0.94
Ring Stiffness(3%,Normal Tem,Kpa) SN24 ≥24
SN32 ≥32
SN40 ≥40
Flattening Test (50%) No break,no crack.
Hammer Impact No break,no crack.
Vicat Soften Temperature ( ℃) ≥150
Tensile Strength (%) Pipe:≥25 ; Fusion Joint: ≥22.5
Elongation at Break (%) ≥400
Flexural Strength (Mpa) ≥36

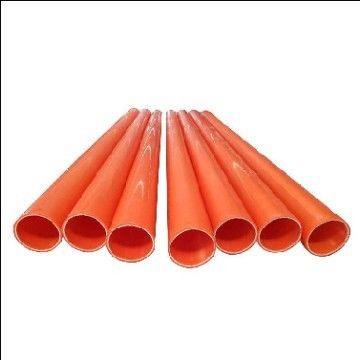

ISO9001 Underground Electrical Conduit DN50*5 Buried Electrical Conduit 0

ISO9001 Underground Electrical Conduit DN50*5 Buried Electrical Conduit 1
