| Place of Origin: | Sichuan, China |
|---|---|
| Brand Name: | YOUYUE |
| Certification: | ISO 9001 |
| Minimum Order Quantity: | Negotiable |
| Price: | Negotiable |
| Packaging Details: | Standard package or customized packing |
| Delivery Time: | Negotiable |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 1000000 Meters per Month |
| Material: | PE | Standard: | ISO4427, EN, DIN, AS, ASTM |
|---|---|---|---|
| Certificate: | ISO9001, ISO4427 | Specification: | 32/26 Or 34/28 Or 40/33 Or 46/38 Or 50/41 Or 63/54 |
| Feature: | Corrosion Resistant | Usage: | Fiber Optic Application |
| Length: | As Required | Thickness: | Accordingly |
| High Light: | 32/26 Plastic Communication Conduit,50/42 Plastic Communication Conduit,1.5 Inches HDPE Flexible Conduit |
||

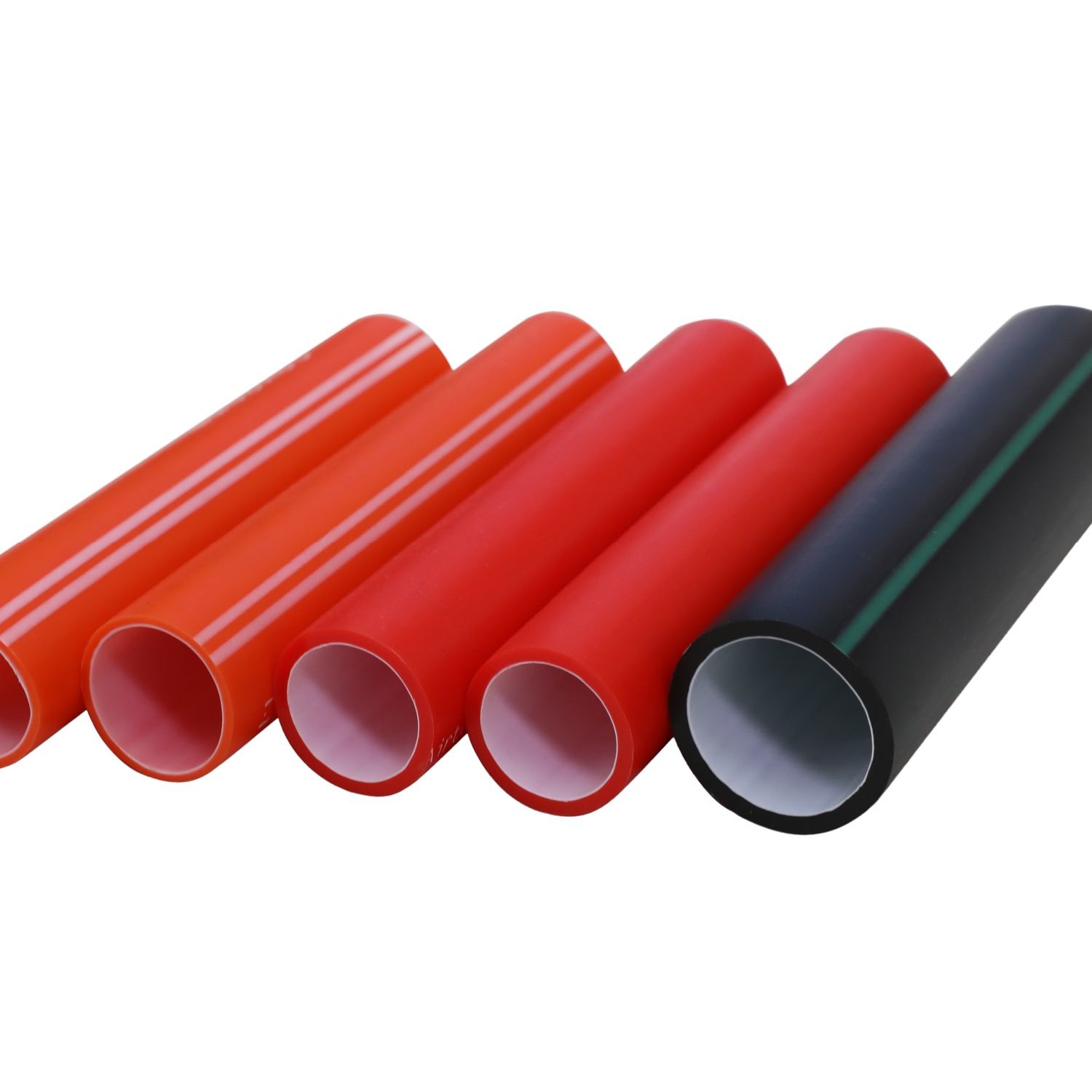

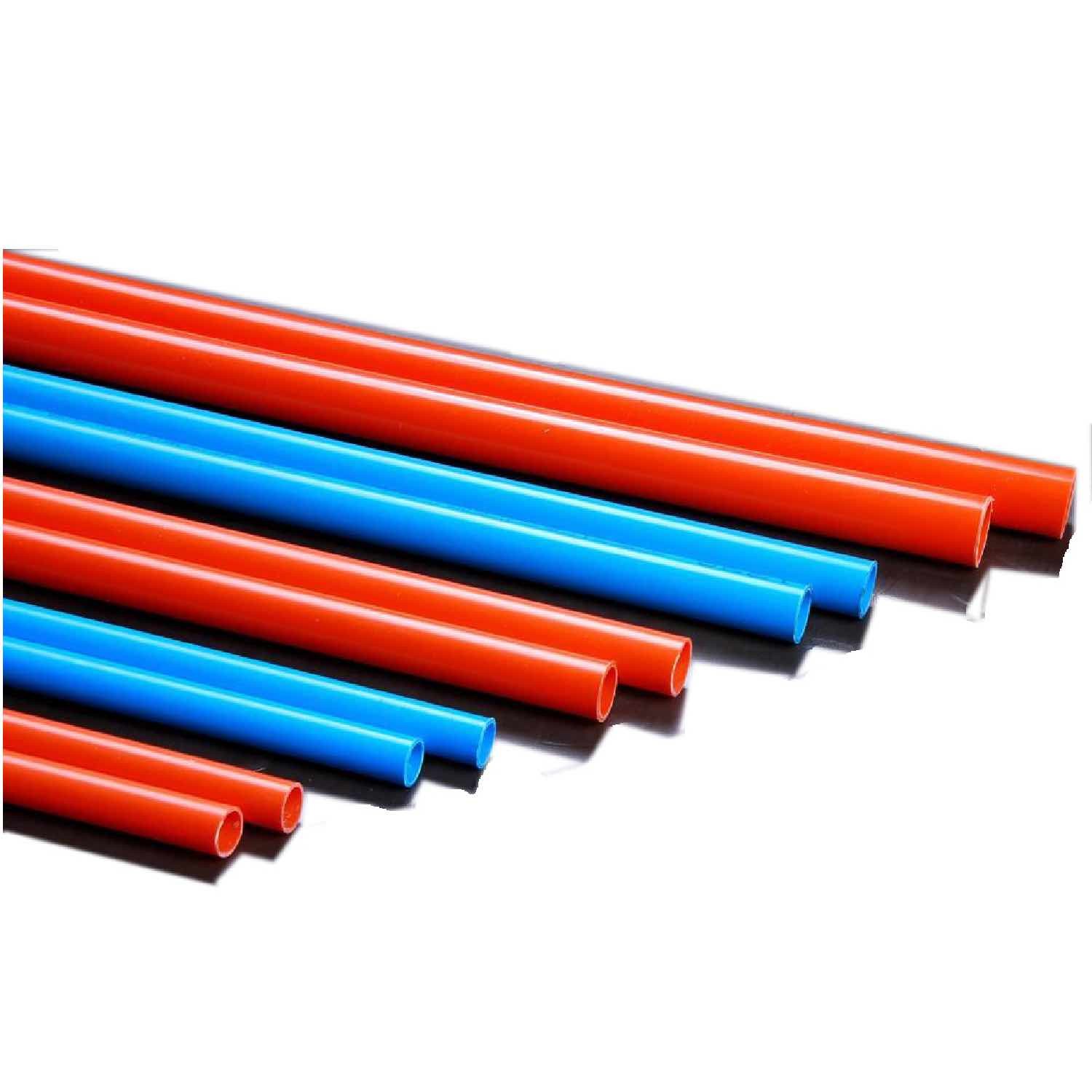

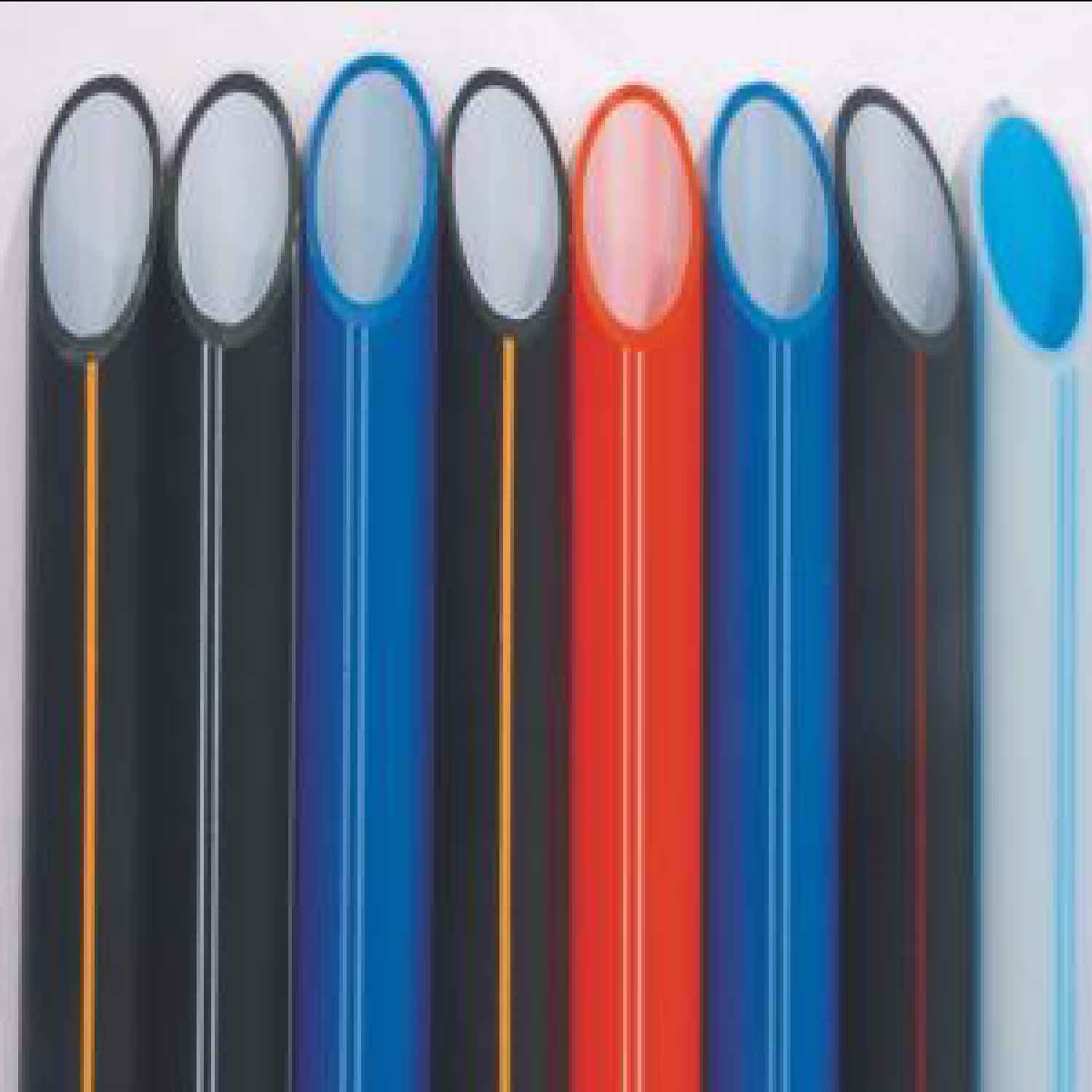

Silicon Core Conduit HDPE pipe 32/26 50/42 40/33 and 1.5 inches for Fiber Optic Application Conduit Pipe Color Customize
Plastic communication conduit Features:
1. The inner core of the silicon core layer is a solid, permanent lubricant;
2. The silicon core layer of the inner wall is synchronously extruded into the wall of the high-density polyethylene pipe, and uniformly distributes the inner wall of the pipe, does not peel off, detaches, and has the same life as the silicon pipe;
3. The silicon core layer of the inner wall has the same physical and mechanical properties as the high density polyethylene;
4. The frictional characteristics of the inner core silicon core layer remain unchanged, and the cable can be repeatedly extracted in the pipe;
Specifications:
| Specifications | OD(mm) | Min ID(mm) | Thickness(mm) | Length(m) |
| 25/21 | 25 | 21 | 2 | 500,1000/Roll or customizable |
| 32/26 | 32 | 26 | 2.5 | 500,1000/Roll or customizable |
| 34/28 | 24 | 28 | 3.0 | 500,1000/Roll or customizable |
| 40/33 | 40 | 33 | 3.5 | 500,1000/Roll or customizable |
| 46/38 | 46 | 38 | 4.0 | 500,1000/Roll or customizable |
| 50/41 | 50 | 41 | 4.5 | 500,1000/Roll or customizable |
| 63/54 | 63 | 54 | 4.5 | 500,1000/Roll or customizable |
| 76/66 | 76 | 66 | 5.0 | 500,1000/Roll or customizable |
Technical:
| Item | Data | |
| 1. Ring stiffness, KN/m2 | ≥50 | |
| 2. Flat test | Non-rupture and non-stratification | |
| 3. Tensile strength, Mpa | ≥21 | |
| 4. Elongation at break, % | ≥350 | |
| 5. Maximum traction load, N | ≥8000 | |
| 6. Hardness, HD | ≥59 | |
| 7. Longitudinal retraction rate,% | ≤3 | |
| 8. Friction coefficient of inner wall | static state | ≤0.25 |
| moving | ≤0.15 | |
| 9. Power frequency breakdown strength, MV/mm | ≥24 | |
