6mm Thickness DN50 MPP Underground Electrical Conduit Heat Shrinkable

Basic Information
Place of Origin: SICHUAN, CHINA
Brand Name: YOUYUE
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: Standard package or customized packing
Delivery Time: Negotiable
Payment Terms: L/C, T/T
Supply Ability: 1000000 Meters per Month
Detail Information
Material: PP Usage: Electric Cable Protection
Color: Orange Type: Heat Shrinkable
Specification: DN110-250 Mm Length: 5.8m/6m/11.8m/12m/OEM
Place Of Origin: China
High Light:

6mm MPP Underground Electrical Conduit


DN50 MPP Underground Electrical Conduit


DN50 MPP underground conduit pipe

Product Description

MPP Underground Electrical Cable Conduit Pipe
MPP (modified polypropylene) underground electrical conduit for electrical communication cable protection
Product Description:

The MPP underground electrical conduit protective sleeves for power cables is a new plastic pipe made of MPP with special formulation and technique. It has a series of advantages, such as high strength , good stability , easy cable threading , simple construction and cost saving. With outstanding advantages during pipe jacking construction, the product meets the development requirements of modern cities. Trenchless technology is adopted for the construction of MPP power cable sleeves, which not only protects the pipe line network reliability, reduces its failure rate , but also greatly improves urban environment.

MPP (modified polypropylene) underground electrical conduit for electrical communication cable protection is manufactured as the new type of plastic pipe adopting modified polypropylene as the main raw material and using a special formula and processing technology,with good features of high strength,temperature resistance,handling easily,convenient installation and cost saving.The modified polypropylene trenchless pipe is widely used as the protection pipe of electrical communication cable. Its characteristics is more obvious as a towing pipe. It conforms to the development requirements of modern cities and is suitable for buried depth of 2~18m.
Technology of trenchless
Technology of trenchless is widely used based on its good advantages of non pollution of environment, not affect traffic, little
damage to stratigraphic texture,no need of soil transportation and pilling,cost-effective and remarkable social and economic
benefits.This kind of trenchless technology not only ensures the reliability of the network and reduces the failure rate, but also
makes the environment of the city greatly improved.There is no need to dig up and destroy the road surface largely.It is very
suitable for laying pipelines, cables and other construction works in special areas such as roads, railways, buildings and under
river etc.


Quick details:

Model Number: Product name:
MPP underground electrical conduit MPP underground electrical conduit
Material: Application:
PP Wire Protecting
Specification: Feature:
DN50-DN315 Corrosion Resistant
Length: Certification:
6M 9M 12M, 6m 9m 12m ISO9001-2008 CE
Thickness: Connection:
6MM-22MM Thermofuse and electrofusion
Standard: Keyword:
ISO DL/T802.7-2010 Plastic Pipe for cable protection
Processing Service: Type:
Moulding, Cutting Round Pipe
Color: OEM:
Orange Accpet


Supply Ability

Supply Ability 30000 Meter/Meters per Month
Packaging & Delivery

Packaging Details upon request

Port Chongqing , Chengdu , Shanghai, any main port in China

Lead Time:

Quantity(Meters) 1 - 5000 5001 - 10000 >10000
Est. Time(days) 15 20 To be negotiated


Features of Underground electrical conduit


1. Excellent electrical insulation performance.
2. High thermal deformation temperature and good low-temperature impact resistance.
3. The tensile and compressive resistances are higher thanthose of HDPE.
4. Light weight, smooth, low friction resistance, and butt-type heat fusion welding is available.
5. Long-term working temperature range : -5-70℃.



Specification Length(m) Thickness(mm)
DN50*5 6 5
DN80*5 5
DN80*8 8
DN110*4 4
DN110*5 5
DN110*6 6
DN110*8 8
DN110*10 10
DN150*8 8
DN150*10 10
DN150*12 12
DN160*8 8
DN160*10 10
DN180*8 8
DN180*10 10
DN200*8 8
DN225*8 8
DN160*12 12
DN180*12 12
DN200*10 10
DN200*12 12
DN225*10 10
DN225*12 12
DN250*8 8
DN250*10 10
DN250*12 12



Item Index
Density (g/cm3) 0.90-0.94
Ring Stiffness(3%,Normal Tem,Kpa) SN24 ≥24
SN32 ≥32
SN40 ≥40
Flattening Test (50%) No break,no crack.
Hammer Impact No break,no crack.
Vicat Soften Temperature ( ℃) ≥150
Tensile Strength (%) Pipe:≥25 ; Fusion Joint: ≥22.5
Elongation at Break (%) ≥400
Flexural Strength (Mpa) ≥36

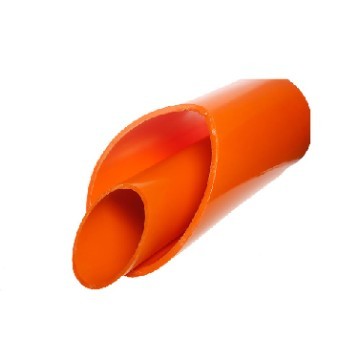

6mm Thickness DN50 MPP Underground Electrical Conduit Heat Shrinkable 0

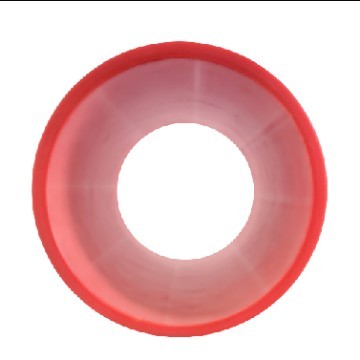

6mm Thickness DN50 MPP Underground Electrical Conduit Heat Shrinkable 1

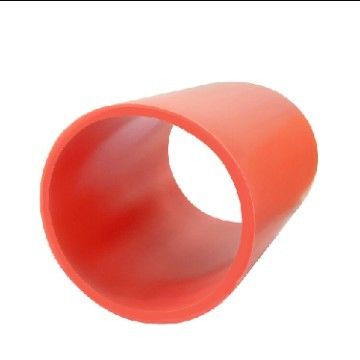

6mm Thickness DN50 MPP Underground Electrical Conduit Heat Shrinkable 2
